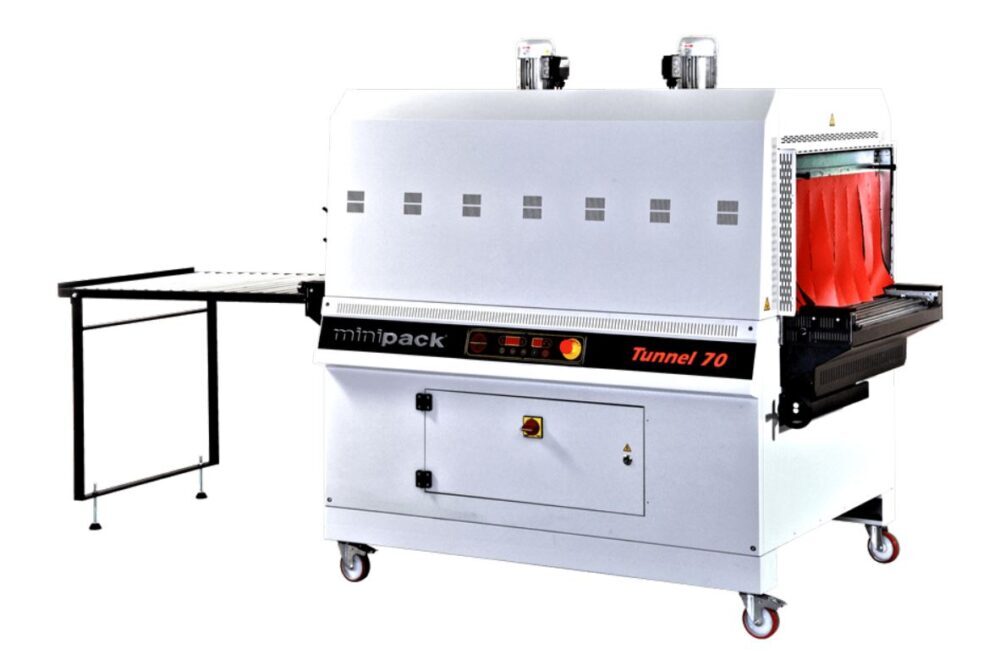

SHRINKING TUNNEL
TECHNICAL FEATURES
| TUNNEL 70 | ||
| Electrical power supply | V | 200/208/220/380/415 |
| Max power installed | Kw | 14 |
| Min. belts speed | m/min | 1 |
| Average belts speed | m/min | 5 |
| Max. belts speed | m/min | 12 |
| Max product dimensions | mm | 500 x 350 lg. 800 |
| Work surface height (infeed conveyor belt) | mm | 845/875 |
| Work surface height (exit) | mm | 845 |
| Machine dimensions | mm | 1820 x 1200 h. 1640 |
| Packaging machine dimensions | mm | 2030 x 1230 h. 1830 |
| Machine weight (Net / Gross) | Kg | 415/483 |
| Tunnel infeed dimensions | mm | 680 x 380 |
The TUNNEL 50, 50 TWIN and 70 has been designed to be perfectly integrated with the Pratika automatic packaging machines. They solve the needs to pack the products with great technical and esthetical results. The technical and aesthetic updates can meet a number of packaging needs in a flexible and effective manner with a wide variety of heat-shrink films.
The INOX versions are ideal for the needs of the food-processing and pharmaceutical sector.
TECHNICAL FEATURES
- Manual belt height adjustment
- Digital display with 9 programs that can be selected and customised
- Option of selecting the autorotating feature for the rollers
- Product conveyor
- Adjustable double air baffles
- Autooff program
- Outfeed roller conveyor provided as standard
- Two separate chambers with temperature control
